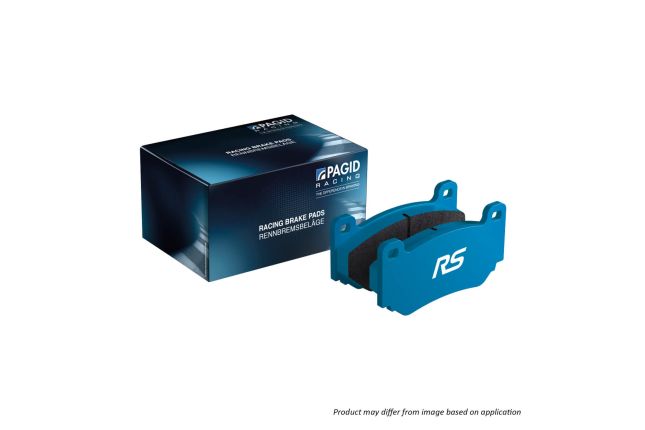

Pagid - E259314010 - Pagid RS 14 Brake Pads; Front
E259314010 - Pagid RS 14 Brake Pads; Front
The RS14 compound from Pagid Racing is engineered as an “all-round” racing friction material built to meet modern motorsport demands while maintaining disc-friendliness and consistent in-stop behavior. This medium-to-high friction ceramic/low-metallic resin bond material offers strong initial bite, excellent modulation and controllability, and a low wear rate, enabling drivers to push hard while retaining confidence, even under high thermal loads. With fade resistance up to approximately 650-700 °C, the RS14 is suitable for those demanding track- or club-race applications where performance and endurance must align. Additionally, its low heat conductivity helps reduce thermal transfer from disc to caliper and brake fluid, supporting overall system durability under repeated heavy use. Because this compound has been superseded in most applications, we recommend the RST3 pads as a suitable alternative.
Specifications:
| Manufacturer | Pagid |
|---|---|
| UPC/EAN Code | 4056029013282 |
| Brake Pads Compound | Para-Aramid |
| FMSI Number | D109-7391, D109-8275 |
| Brake Pads Type | Race |
| Package Contents | 1 set of pads for two calipers |
| Inner Pad Thickness (mm) | 14,60 |
| Inner Pad Height (mm) | 66 |
| Inner Pad Width (mm) | 76,80 |
| Outer Pad Height (mm) | 66 |
| Outer Pad Thickness (mm) | 14,60 |
| Outer Pad Width (mm) | 76,80 |
| Brake Pad Annulus (mm) | 51 |
| Pad Label | RS 14 |
- KTM / X-Bow 2008-Present / Track car 2008-Present / X-Bow 2.0 Turbo 2008-2012
- KTM / X-Bow 2008-Present / Track car 2008-Present / X-Bow 2.5 Turbo 2012-Present
- Lotus / 2-Eleven 2007-2011 / Roadster 2007-2011 / 2-Eleven 1.8 2007-2011
- Lotus / 2-Eleven 2007-2011 / Roadster 2007-2011 / 2-Eleven 1.8 Supercharged 2007-2011
- Lotus / Elise (1st Gen) 1996-2001 / Roadster (111) 1996-2001 / Elise 1.8 1996-2001
- Lotus / Elise (1st Gen) 1996-2001 / Roadster (111) 1996-2001 / Elise 111S 1.8 1998-2001
- Lotus / Elise (1st Gen) 1996-2001 / Roadster (111) 1996-2001 / Elise 340R 1.8 2000-2001
- Lotus / Elise (2nd Gen) 2001-2011 / Roadster (111) 2001-2010 / Elise 1.8 2001-2007
- Lotus / Elise (2nd Gen) 2001-2011 / Roadster (111) 2001-2010 / Elise 111R 1.8 2004-2007
- Lotus / Elise (2nd Gen) 2001-2011 / Roadster (111) 2001-2010 / Elise R 1.8 2007-2010
- Lotus / Elise (2nd Gen) 2001-2011 / Roadster (111) 2001-2010 / Elise S 1.8 2007-2010
- Lotus / Elise (2nd Gen) 2001-2011 / Roadster (111) 2001-2010 / Elise SC 1.8 Supercharged 2008-2010
- Lotus / Elise (3rd Gen) 2010-2021 / Roadster (111) 2010-2021 / Elise 1.6 2010-2018
- Lotus / Elise (3rd Gen) 2010-2021 / Roadster (111) 2010-2021 / Elise CR 1.6 2011-2021
- Lotus / Elise (3rd Gen) 2010-2021 / Roadster (111) 2010-2021 / Elise R 1.8 Supercharged 2010-2011
- Lotus / Elise (3rd Gen) 2010-2021 / Roadster (111) 2010-2021 / Elise S 1.8 Supercharged 2012-2021
- Lotus / Elise (3rd Gen) 2010-2021 / Roadster (111) 2010-2021 / Elise SC 1.8 Supercharged 2010-2011
- Lotus / Europa (2nd Gen) 2006-2010 / Coupe (121) 2006-2010 / Europa S 2.0 Turbo 2006-2008
- Lotus / Exige (1st Gen) 2000-2002 / Coupe (SCC) 2000-2002 / Exige 1.8 2000-2001
- Lotus / Exige (1st Gen) 2000-2002 / Coupe (SCC) 2000-2002 / Exige 1.8 2001-2002
- Lotus / Exige (2nd Gen) 2004-2011 / Coupe (SCC) 2004-2011 / Exige 1.8 2004-2007
- Lotus / Exige (2nd Gen) 2004-2011 / Coupe (SCC) 2004-2011 / Exige S 1.8 Supercharged 2005-2007
- Opel / Speedster 2000-2005 / Roadster (E01/R97) 2000-2005 / Speedster 2.0 Turbo 2003-2005
- Opel / Speedster 2000-2005 / Roadster (E01/R97) 2000-2005 / Speedster 2.2 2000-2005
