DBA - DBA040S - Street Series T2 Brake Rotor; Front

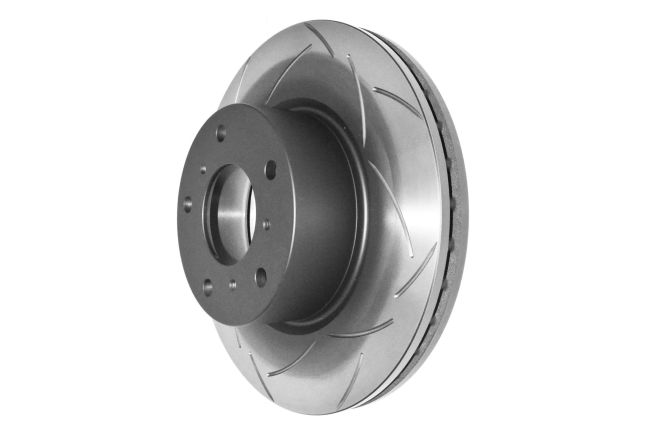

DBA040S - Street Series T2 Brake Rotor; Front
DBA Street Series T2 rotors offer the advantages of DBA's direct replacement rotors, enhanced by the introduction of DBA's patented T2 slot design. This design incorporates precisely CNC machined bi-symmetrical slots, leading to a quieter and more responsive brake pedal feel. With increased exit points, the T2 design allows for improved dispersal of friction dust and gases, enhancing pad bite. DBA Street Series rotors are the ideal choice for drivers seeking OE-level performance enhancement. These rotors feature enhanced heat transfer and thermal efficiency achieved through center-split core castings, and they utilize a Cubic Boron Nitride (CBN) machine-turned finish, minimizing disc thickness variation and preventing pad "knock" for prolonged durability. Crafted as direct OE replacement disc rotors, Street Series stands out with top-tier manufacturing processes, high-quality materials, and proven safety features, backed by DBA's over 40 years of braking expertise. These rotors are recommended for daily drivers, light commercial vehicles, and SUV applications.
Specifications:
| UPC/EAN Code | 9316391375087 |
|---|---|
| Manufacturer | DBA |
| Bolt Circle Diameter mm | 120 |
| Bolt Hole Quantity | 5,00 |
| Disc Diameter (mm) | 296 |
| Disc Finish | Bi-Slotted |
| Disc Height (mm) | 83 |
| Hub Hole Diameter (mm) | 71,50 |
| Disc Contruction | 1-Piece |
| Disc Side | Left/Right |
| Max Thickness | 28 |
| Min Thickness | 25 |
| Disc Vane Style | Kangaroo Paw |
| Disc Type | Vented |
| Disc Quality | Premium |
| Material | Cast Iron |
| Package Contents | 1x Brake Disc |
| Approvals | ECE R90 Approved |
| Approval Number | E11*90R02/06*60536*00 |
- Front - HOLDEN COMMODORE incl. UTE + VT VX VU VZ UTE (2001 - 07)
- Front - HOLDEN COMMODORE incl. UTE VT VX VY VZ V6 & V8 (9/97 - 05)
- Front - HOLDEN COMMODORE incl. UTE WH WK WL Statesman (2001 - 07)
- Front - HOLDEN CREWMAN (UTE) VY VZ - Crewman S SS - 2WD (2002 - on)
- Front - HOLDEN HSV - CLUBSPORT VT Standard Brakes (9/97 - 10/02)
- Front - HOLDEN HSV - CLUBSPORT VX Standard Brakes (9/97 - 10/02)
- Front - HOLDEN HSV - GRANGE WH Standard Brakes (6/99 - 03)
- Front - HOLDEN HSV - MALOO VU Standard Brakes (9/97 - 10/02)
- Front - HOLDEN HSV - MANTA VT Standard Brakes (9/97 - 10/02)
- Front - HOLDEN HSV - SENATOR VT Standard Brakes (9/97 - 10/02)
- Front - HOLDEN HSV - SENATOR VX Standard Brakes (9/97 - 10/02)
- Front - HOLDEN HSV - XU6 VX Standard Brakes (9/97 - 10/02)
- Front - HOLDEN HSV - XU8 VT Standard Brakes (9/97 - 10/02)
- Front - HOLDEN MONARO CV6 & CV8 (V2) - 2 Door Coupe (12/2001 - 04)
- Front - PONTIAC GTO ALL (2004)
