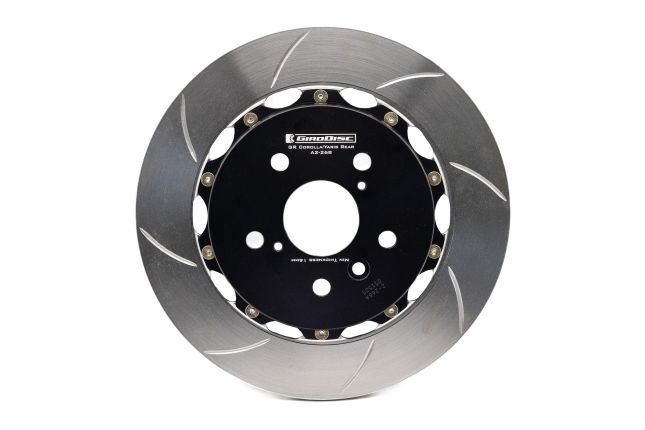

Girodisc - A2-268SR - GiroDisc 2-Piece Rotor Assembly; Right
Item #
A2-268SR
These GiroDisc rear rotors are provided with caliper spacers and longer
bolts to accommodate the larger 316mm rotor vs the smaller sized 297mm
OE rotor.
Question about this product?
Contact us
A2-268SR - GiroDisc 2-Piece Rotor Assembly; Right
The GiroDisc 2-piece rotor system is a direct replacement for the OE
rotor, no modifications are necessary. The disc will bolt directly to
the car and work with OE calipers perfectly. Once the Girodisc system is
in place, simply replace the cast iron rotor ring when needed. The
average Girodisc 2-piece rotor is approx 2kg lighter per rotor then the
stock units. This reduction in rotational and unsprung weight allows for
quicker acceleration and suspension response.
Specifications:
| Manufacturer | Girodisc |
|---|---|
| Bolt Circle Diameter mm | 114,3 |
| Bolt Hole Quantity | 5,00 |
| OEM Disc Diameter (mm) | 297,0 |
| Disc Diameter (mm) | 316,0 |
| Disc Finish | Curved Slotted |
| Disc Height (mm) | 53,25 |
| Hub Hole Diameter (mm) | 62,0 |
| Disc Contruction | 2-Piece Floating |
| Disc Side | Right |
| Max Thickness | 18,0 |
| Min Thickness | 16,0 |
| Disc Vane Style | Curved Vane |
| Disc Type | Vented |
| Spare Parts |
D2-268SR - GiroDisc 2-Piece Rotor Replacement Ring; Right (D2-268SR)
|
| Disc Quality | Premium |
| Material | Cast Iron |
| Package Contents | 1x Brake Disc |
- Toyota / Corolla (12th Gen) 2018-Present / Hatchback (E210) 2018-Present / GR Corolla 1.6 Turbo 2022-Present
- Toyota / Yaris (4th Gen) 2020-Present / Hatchback (XP21) 2020-Present / GR Yaris 1.6 Turbo (GXPA16) 2020-Present
